FL-WD-6004，7504，8004
Publish time 2017-05-23 09:26
|
品名（Name）
|

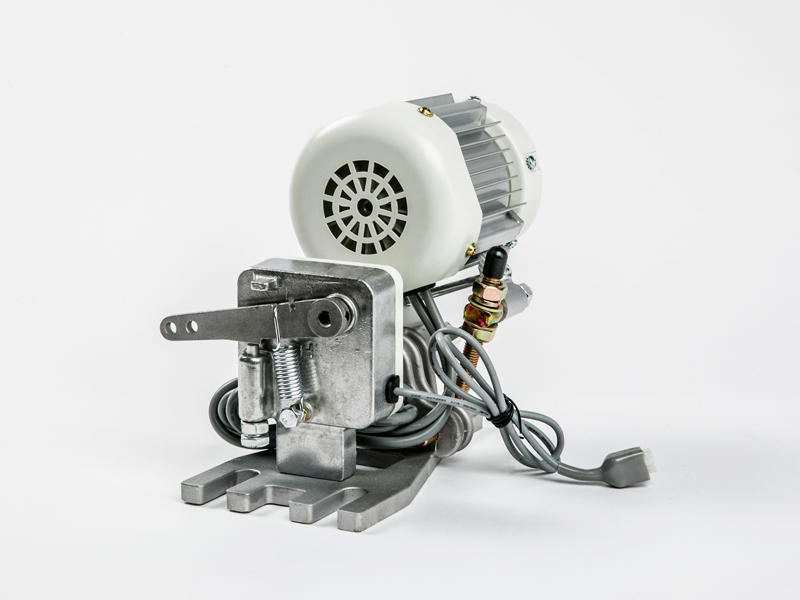

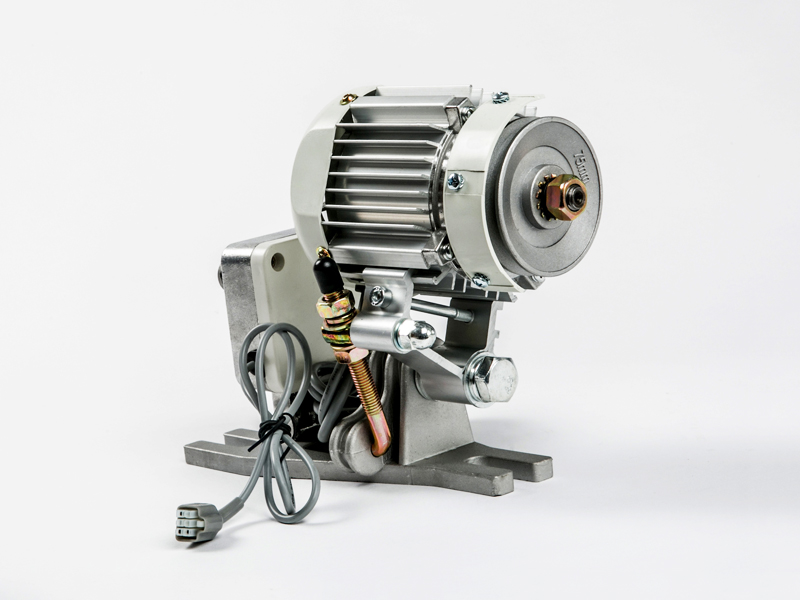

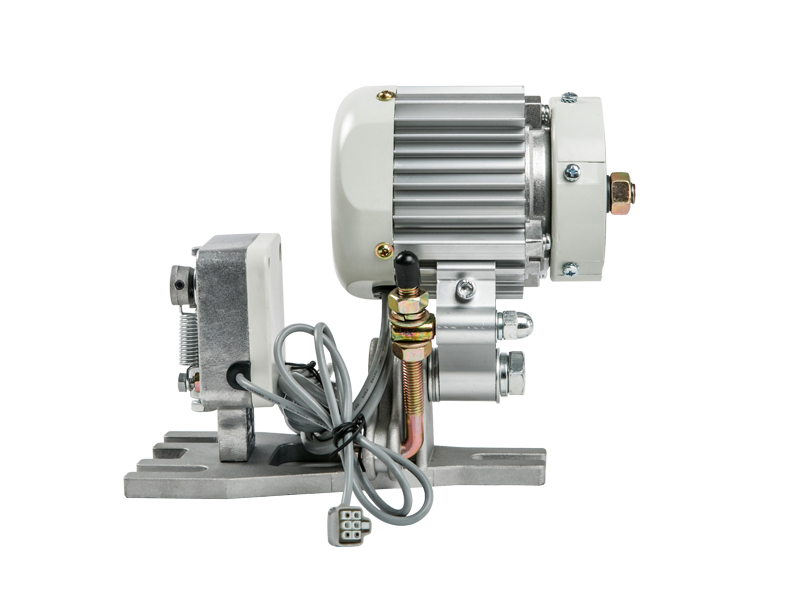

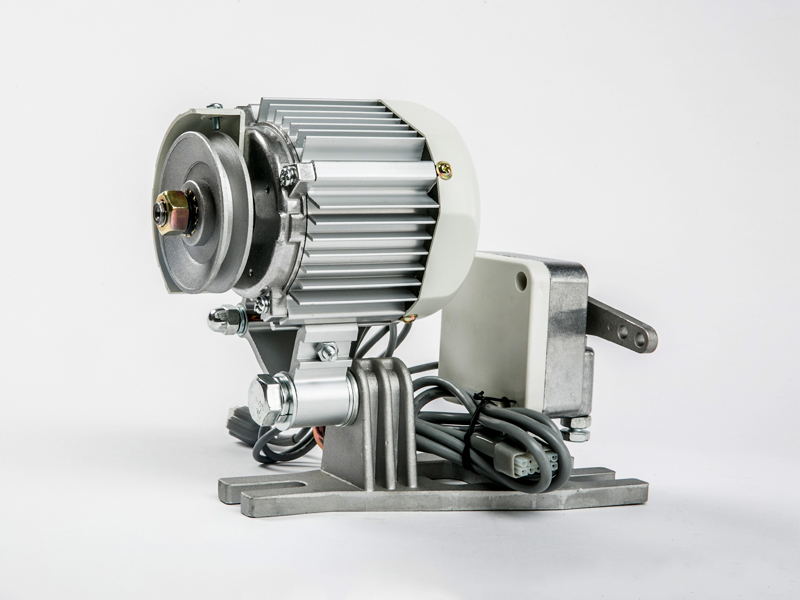

分体式无刷节能电机 Brushless Motor（L型螺杆支架）
|
|
产品技术参数 Technical parameter
|
|
型号
Model
|
功率
Output
|
电压
Voltage
|
频率
HZ
|
转速
R.P.M.
|
最大扭矩
Max. Torque
|
|
FL-WD-6004
|
600W
|
AC110/220V
|
50Hz/60Hz
|
0-4200RPM
|
6.5 N. m
|
|
FL-WD-7504
|
750W
|
AC110/220V
|
50Hz/60Hz
|
0-4200RPM
|
7.5 N. m
|
|
FL-WD-8004
|
800W
|
AC110/220V
|
50Hz/60Hz
|
0-3600RPM
|
8.0 N. m
|
Main
characteristics as following:
1. Low vibration and
noise, which could avoid abrasion and pollution from material. This could help
to improve efficiency by 45%.
2. This servo motor
could save 50-70% electricity compared with clutch motor which could bring a
large economic benefit.
3. Respond swiftly, needle
stop position is accurate.
4. The speed could be
adjusted in the range of 0-3600R/MIN or 0-4200R/MIN.
5. Low exotherm could
help the system work safe and stable.
6. Applied IC, the
input voltage range is AC110 ±10% or AC220 ±10%.
