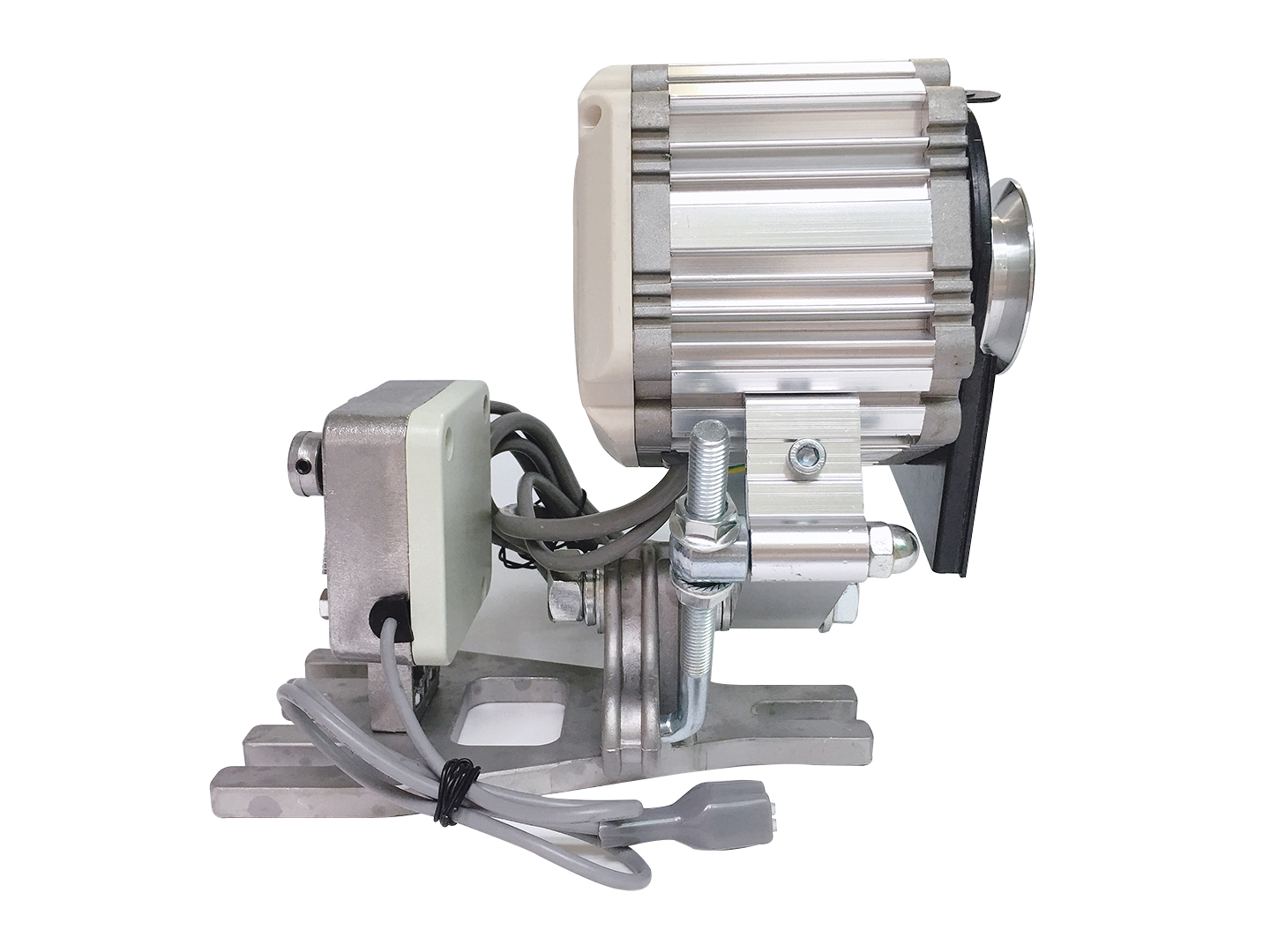

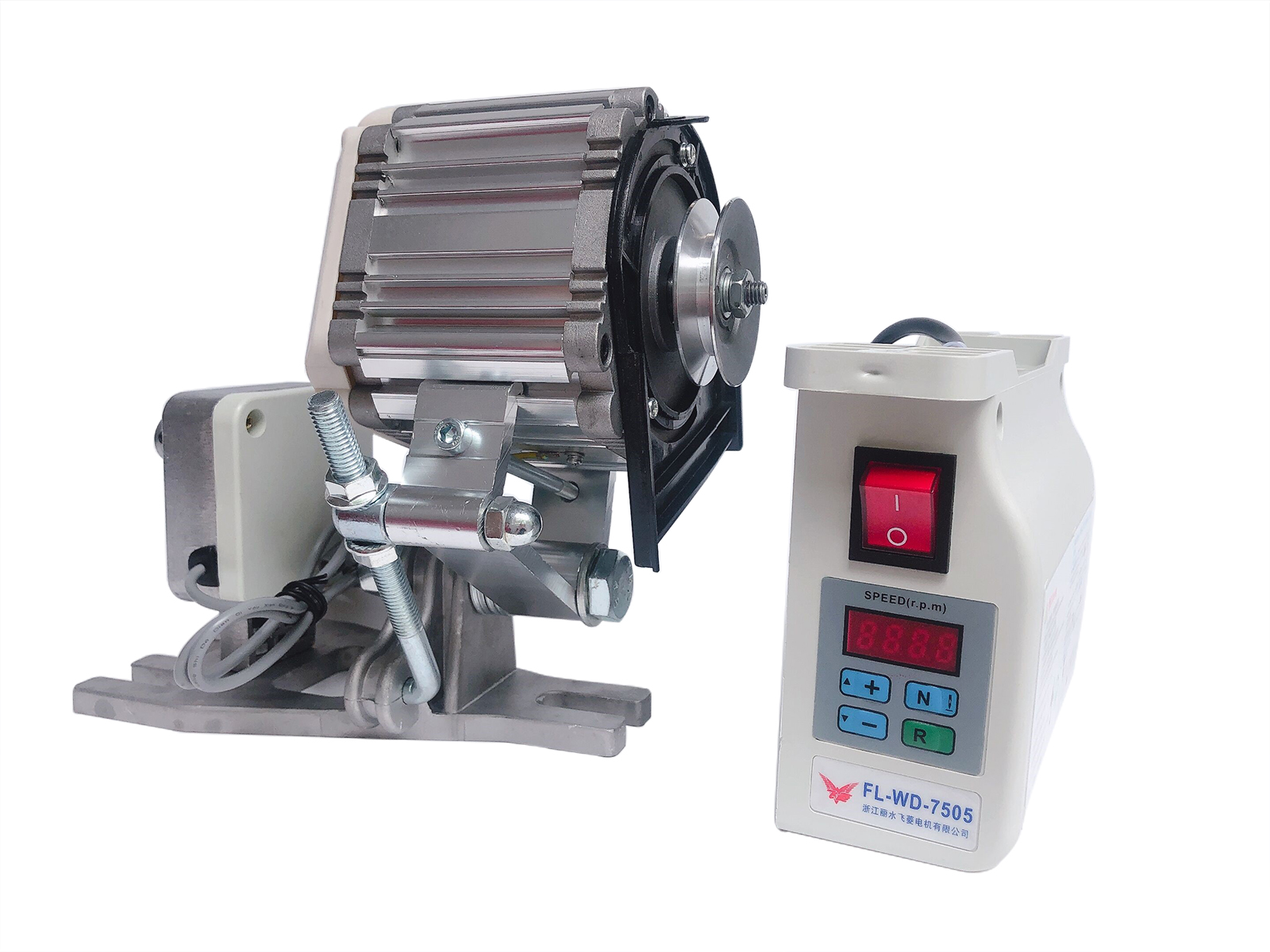

FL-WD-7505 BRUSHLESS MOTOR FOR INDUSTRIAL SEWING MACHINES
Publish time 2019-07-11 15:13
品名（Name）
分体式无刷节能电机 Brushless Motor
产品技术参数 Technical parameter
型号
Model
功率
Output
电压
Voltage
频率
HZ
转速
R.P.M.
最大扭矩
Max. Torque
FL-WD-7505
750W
AC110/220V
50Hz/60Hz
0-3500RPM
7.5 N. m
Main characteristics as following:
1. Low vibration and noise, which could avoid abrasion and pollution from material. This could help to improve efficiency by 45%.
2. This servo motor could save 50-70% electricity compared with clutch motor which could bring a large economic benefit.
3. Respond swiftly, needle stop position is accurate.
4. The speed could be adjusted in the range of 0-3500R/MIN .
5. Low exotherm could help the system work safe and stable.
6. Applied IC, the input voltage range is AC110 ±10% or AC220 ±10%.
